cycle bridges of lake tisza

The design of Tisza lake bridges was managed by SPECIÁLTERV from feasability study phase till their construction in several project phases.

The „infinity” sinusoid arch form of Eger Creek Bridge and Szomokra Creek Bridge is unique to the world. Several innovative technical details had to be applied in order to achieve its final shape. Its structure is a lower deck and deck steel arch bridge with box cross-section bracing bracket with an ortothropic deck plate having nine supports.

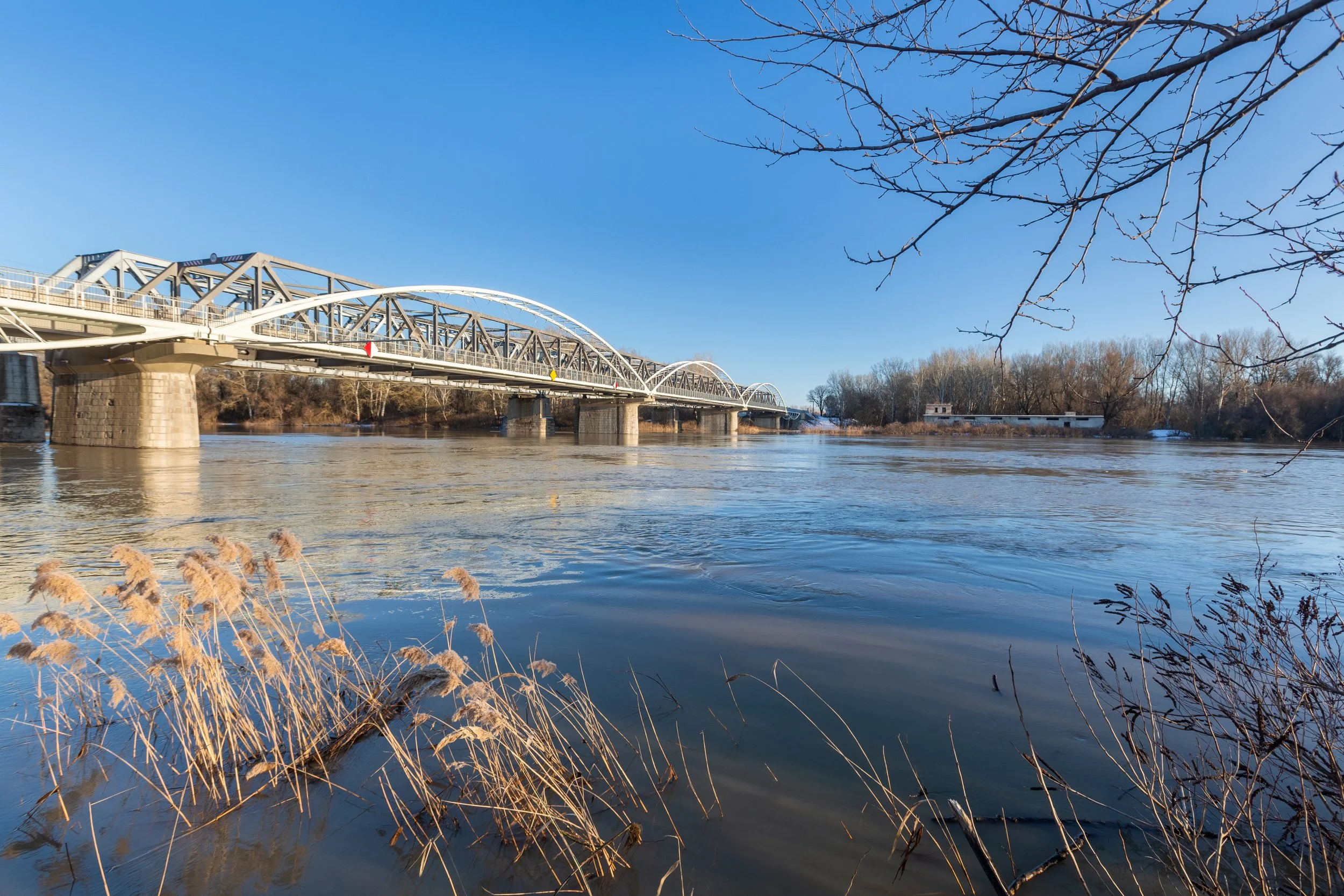

The cycle&pedestrian bridge over River Tisza is a series of five arch bridges with ortothropic steel decks. The arches rest upon the extended pier caps of the road bridge, rendering it unnecessary to disturb the riverbed with new foundations. The wave motif is a dominant feature of the concept. The two side-spans are arched truss structures, while the mid-spans over the riverbed are tied-arch bridges. The arches rise 8.25 m above the deck level, and descend 2,73 m at the piers.

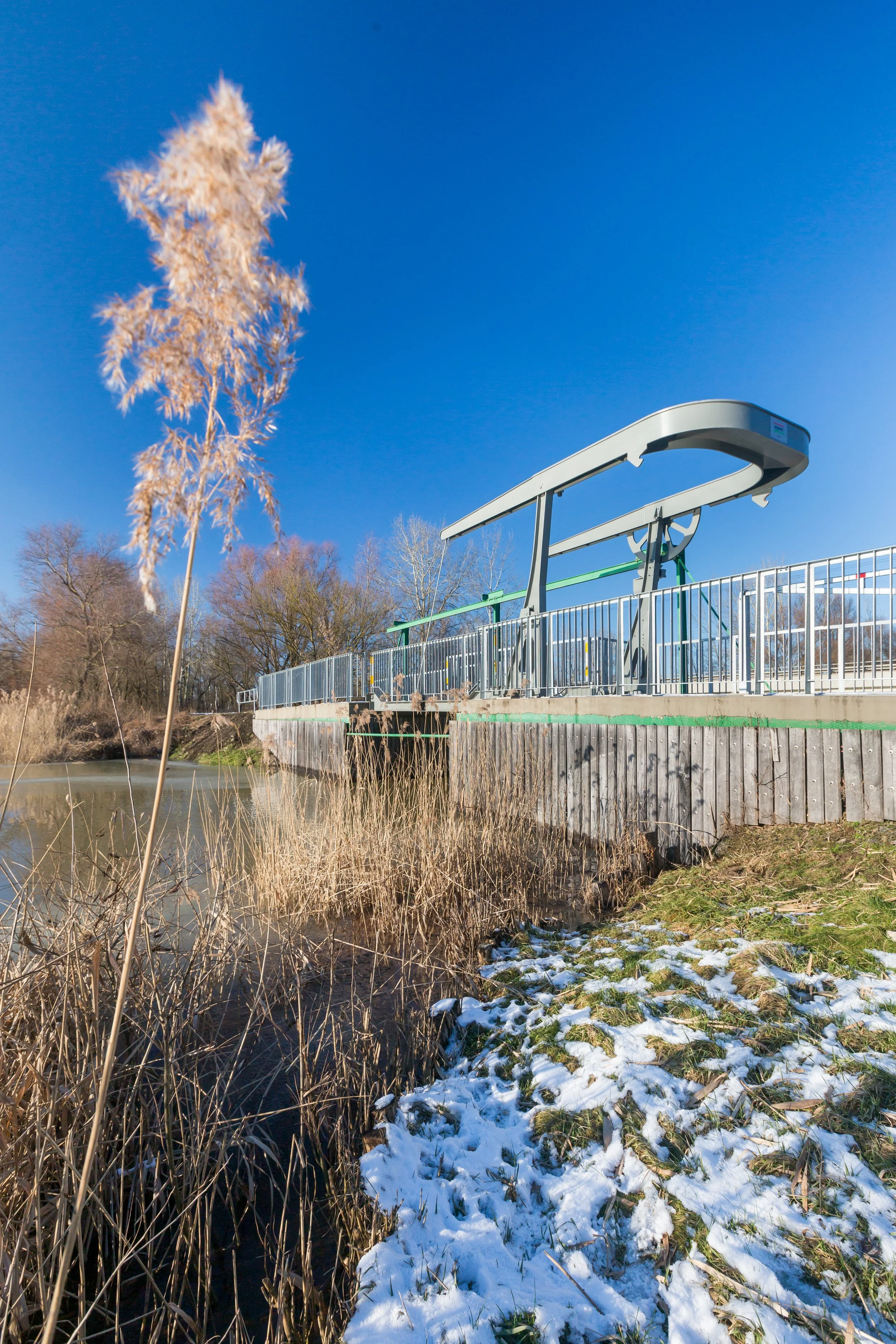

The fourth bridge along the road connecting Poroszló and Tiszafüred is located on the X. Canal of Lake Tisza. It is the first ‘Dutch-type’ bascule bridge in Hungary.

The bridges have since became popular tourist attractions and landmarks to the lake itself. They were recognized by prestigious professional associations and received a number of prestigious awards.

Eger Creek Bridge

Tisza Bridge

Szomorka Creek Bridge

X. Canal Bridge

Parameters


Location

Lake Tisza, HU

Year

2020

Complete

Status

Material

Steel

Length [Eger Creek Bridge]

308 m

Structure [Eger Creek Bridge]

Continuous arch-bridge

Cycle & pedestrian

Function

Contractor

Hódút Kft.

9

No. of spans [Eger Creek Bridge]

services


Design from conceptual to construction phase, coordination in construction phase, bridge & structural design, cycle road design, utility & drainage design, geotechnical analysis

awards


Steel Structure of the Year Award 2020 (Eger Bridge) MAGÉSZ Hungarian Steel Structures Association

Cycle Route of the Year Award 2021 Association of Traffic Sciences, Hungary

I. Prize - FIABCI Hungary Prix d’Excellence 2022 Public Infrastructure / Amenities category

II. Prize - FIABCI World Prix d’Excellence 2023 Public Infrastructure / Amenities category

Best infrastructural development of the past 25 years - FIABCI Hungary Prix d’Excellence 2023 Public Infrastructure / Amenities category
