robinson bridge

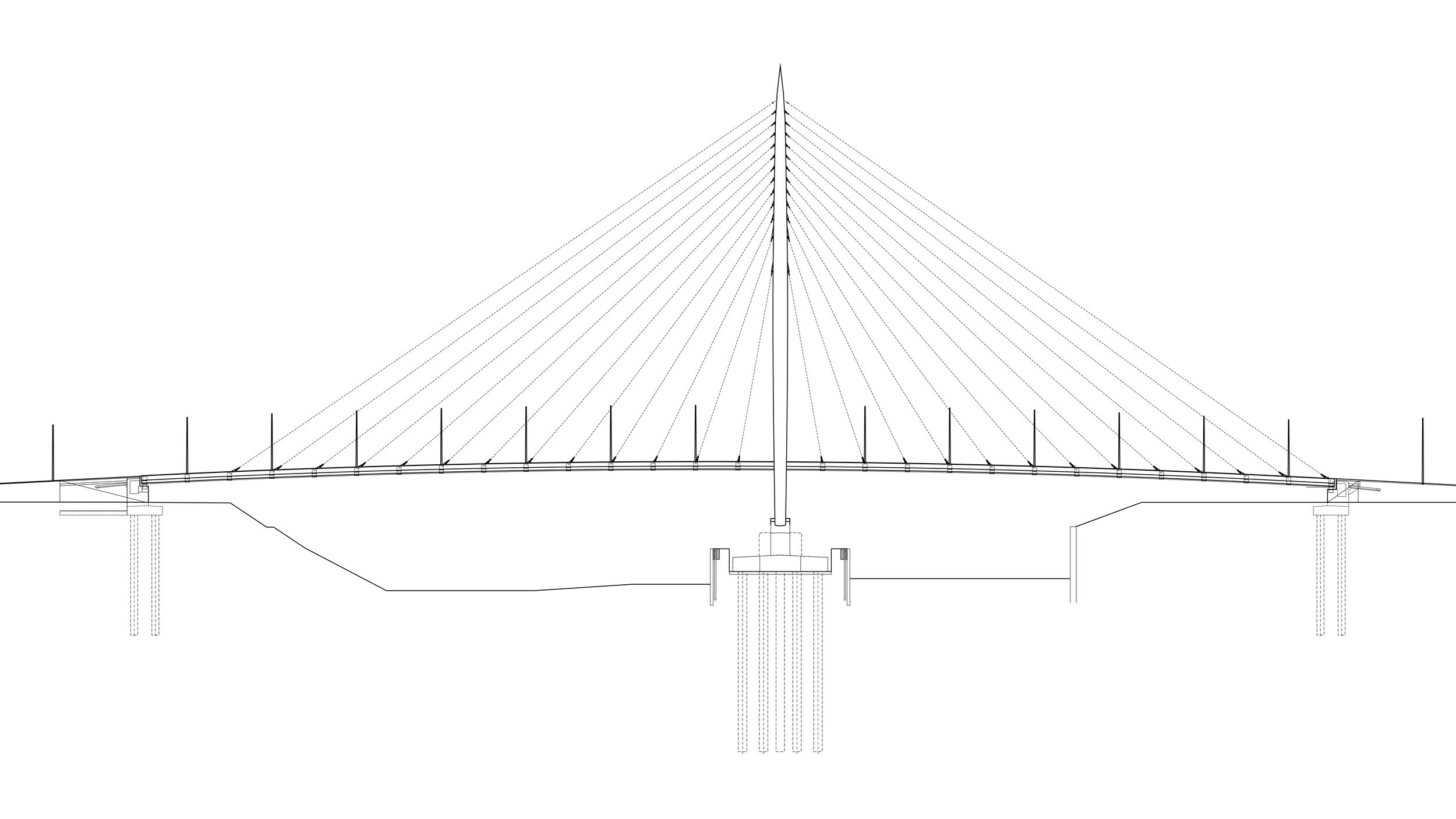

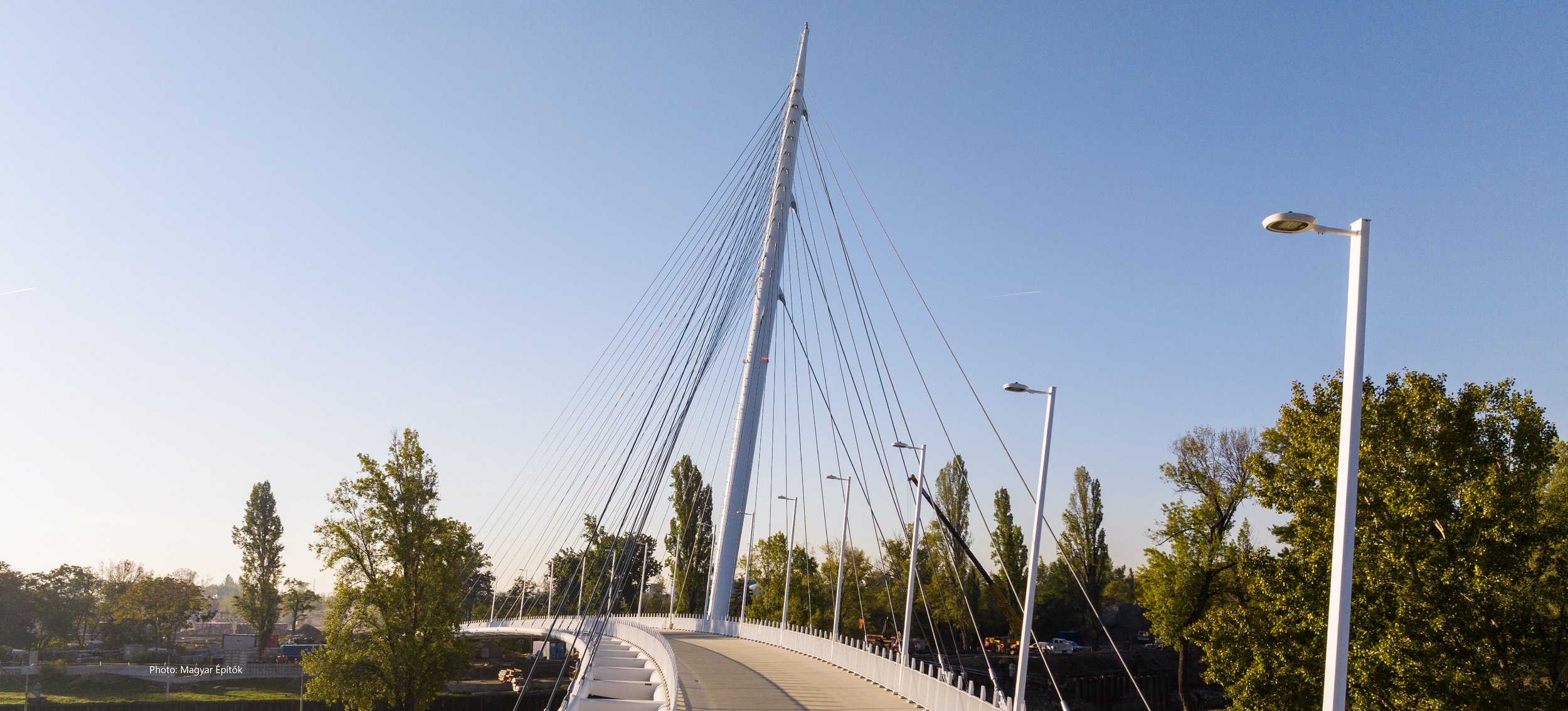

The ‘Robinson’ Bridge is a 168 m long cable-stayed steel bridge with an orthotropic steel deck accommodating a 7 m wide pedestrian walkway. The pylon rises 64 m above ground in its final position. The deck girder will be suspended on the pylon without any intermediate support. The deck is connected to the pylon by 53 cables, which are balanced by 3 stabilizing cables at the back of the pylon. The total weight of the steel structure is nearly 1 000 t. The slender design is achieved with tuned mass dampers to meet pedestrian comfort criteria.

The pylon stands alone on a small artificial island within the confluence of Danube’s Ráckevei-Soroksári branch, which is otherwise inaccessible to public - this is where the bridge got its name.

Parameters


Location

Budapest, HU

Year

2022

Status

Complete

Material

Steel

Function

Cycle & pedestrian

No. of spans:

1

Length

170 m

Structure

Cable-stayed bridge

Contractor

Hídépítő Kft., ZÁÉV, Magyar Építő Zrt.

services


Design from conceptual to construction phase, bridge & structural design, cycle road & walkway design, utility & drainage design

awards

Steel Structure of the Year Award 2023 MAGÉSZ Hungarian Steel Structures Association

TOP 6 Cycle and Pedestrian Bridges 2023 IABSE - International Association for Bridge and Structural Engineering

Award of Excellence 2023 Transportation Facilities category, Foundation for Constructors’ Masterworks

Winner in Architectural Design 2024 BLT Built Design Awards, Bridges and Public infrastructure

Winner Award 2024 BIG SEE Architecture Award, Public, cultural and infrastructure buildings category

Category winner 2024 FIABCI Hungary, International Real Estate Federation
